Stainless Steel (SS316) Heat Exchanger

2 x 1825 mm long Shell with 10 x 15 mm tubes in each shell.

Shell diameter 125mm

50 mm inlets 150 psi bolt on flanges flanges.

Surface Area of inner tubes is 2.2m2

UNKNOWN LIQUID PROCESSING

Dimpleflo tube-in-tube heat exchanger.
Double tube each measuring 2000mm long
Inner DP 400KPa TP 600KPa
Outer DP 400KPa TP 600KPa
DT -10C to 100C
3 inch product line.
2 inch service fluid line.
The Dimpleflo Double Pipe Heat Exchanger (also known as "Tube-in-Tube") is the simplest and most robust configuration of hygienic heat exchanger.
Dimpleflo tube in tube heat exchangers are utilise...

TERALBA 2T 51 76 2000

Plate heat exchanger. Make: Alfa Laval Model: M6 FMC Max work pressure(G): 10Bar Max work temp: 110

ALFA LAVAL M6 FMC

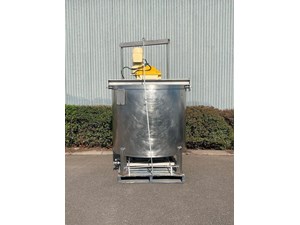

Stainless steel mixing tank.

Total Volume: 1,850 Litres.

Open top.

Conical Bottom.

1 Inch outlet to a ss ball valve.

Removable 'Lightnin' mixing agitator model 1505.5.

3 Phase, 415 V, 4kW, 7.87A WEG EX Flameproox Electric motor with a flamproof plug.

Output rpm: 101

Agitator can be completely removed from tank very easily.

Tank and mixer in excellent condition and mixer runs very well...

UNKNOWN 1850 LITRES

Offered in the revolutionary Platinum GFPP featuring true union end connections in 2 in, with threaded ends. One piece injection molded construction. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM up to 2 inch.

Make: HAYWARD
Model: FLV4P1S20T4VS
Vessel Material: GFPP
Connection Material: GFPP
Connection Size: 2 inch / DN50
Maximum Pressure Rating: 150psi at 70 degre...

HAYWARD FLV4P1S20T4VS

SWT/C-30 FrymaKoruma Scrape surface heat exchanger, with a total surface area of 3 m2.

Fitted with a SEW 11kw right angle drive and complete electrical controls. Unit is mounted on a SS skid and is fitted with a water pump and valves.

* Year of Construction: 2008

* Construction material: SS 316L

* Voltage 220/400, 60Hz, 3Ph

* Capacity: 3m2

* Double acting mechanical seals and insula...

FRYMA KORUMA SWT/C-30

Stainless Steel Cartridge Filter, suitable for very fine filtration.
Part Number: DMKYY183C20
Model: DMK 183 Type 92-183-1
Housing Volume - 111 Litres
Cartridge Number and Height - 18 x 30inches
Max Pressure 8 BAR
Temp Range 0-150degC
Fluid Group 1 and 2
Material SS316
YOM 2016
Ex Coca-Cola

BHF TECHNOLOGIES DMK 183

Features:--
Type	          - spiral

Description--
500mmdia spiral heat exchanger s/steel contact parts 60mm ports built in 1987, rated at 5bar D.P and 100 deg cel. 4.4m2 Heating surface.

ALFA LAVAL IV

20,000lt per hour APV pastuerizer. Last processing pineapple and apple juice. complete with 4 inch mono pump and centrifugal pump. No controls. APV flash cooler mounted on top.

APV 20000LT

Stainless steel 316L basket filter fitted with a pump and mounted to a stainless steel table.

Basket Filter

Part Number: 81A12MWN15A1BE

Volume: 3.9 Litres

Working Temp: -10C Min,  150C Max.

Max Working Pressure (BAR G):

Liquid: Group 1 - FV/21, Group 2 - FV/21
Gas: Group 1 - FV/12, Group 2 - FV/21
PED Category: 1

Pump

Make: LOWARA

Model: 1HM

Power: 3 Phase, 415V, 0.24kW, 1.09A.

Spee...

2020 AMAZON FILTERS 81A

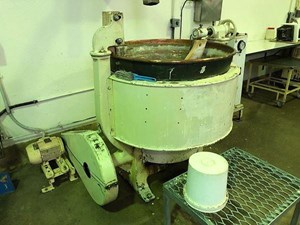

Marzipan Copper Mixing Pan 150kg capacity
Made by: Baker Perkins
Jacketed copper pan with 2 scrapers of hardwood.
Simon Electric steam boiler, 415v
Last used to make Marzipan but could be used to make other food products.

BAKER PERKINS 150

APV Type N35RKS 3 Section Plate HE/Pasteuriser. Year 2005. Capacity Kg/hr 12240. Surface Area M2 120.1 Bar 10. temp 95c. 2 inch ports. Ex Beverage plant.

APV N35RKS
