FA Maker

Dimpleflo tube-in-tube heat exchanger.
Double tube each measuring 2000mm long
Inner DP 400KPa TP 600KPa
Outer DP 400KPa TP 600KPa
DT -10C to 100C
3 inch product line.
2 inch service fluid line.
The Dimpleflo Double Pipe Heat Exchanger (also known as "Tube-in-Tube") is the simplest and most robust configuration of hygienic heat exchanger.
Dimpleflo tube in tube heat exchangers are utilise...

TERALBA 2T 51 76 2000

Shinko-Vrieco - Nauta Mixer.
Model: SV001V-1
Charged Capacity: 100 Litres
Stainless steel. 3 Phase, 415V with Start/Stop.
Inlet flange on top: 120mm
Outlet flange on bottom: 160mm
The SV Mixer gives the contents a 3 dimensional motion which is a combined movement of three kinds. By a simultaneous rotation and orbital motion of a mixing screw in the conical vessel. Owing to the multiple ef...

SHINKO SV001V-1

TECNINOX - Tri-Blender ATEX Rated

Powder/liquid blending system. Fast, thorough and trouble-free blending.

Tri-Blenders make it easier than ever to mix powders with liquids, and avoid the time, trouble and lost product associated with reprocessing and pre- and post-blending operations.

The Tecninox Tri-Blender is specially designed to thoroughly and efficiently blend powders and liquids, whi...

2010 TECNINOX F4329-MD

Reverse Pulse Dust Collector. 100 Bags, 10 ft long. Fliter area: 140m2 Complete with 18.5kW Aerovent Australia fan. Side explosion relief vents. Goyen Precision P2 control system. Includes access platform and stairs. Ducting not included.

FILTAIRE 100-10

Stainless steel screw conveyor.l 10m long x 400mm dia 350mm pitch 7.5kw drive. 400mm x 500mm outlet 600mm x 500mm inlet

A 10M X 400

DC Drive - ASEA TRYAK 500kw. Input Volts 415v 50hz. amps 833. Output Volts DC 510, 1021 amps. 2 x 1000amp main switches.

ASEA YGML 510-1400

Unused - Clamp on style agitator. Clamps onto the side of a tank.

Stainless Steel shaft 1200mm long

Stainless Steel impeller 400mm dia

Drive motor 0.55kw, Ratio 5:1

Final Blade speed is 280rpm

2019 SPX INDUSTRIAL MIXERS

Features:--
Ton	        - 1.5
Capacity	- 0

Description:--
SINGLE DRUM 30HP 3 PHASE

QUICK 1.5 TONNE

The MX7600 Desiccant Dehumidifier is designed to efficiently dehumidify in low moisture applications. Its airtight construction delivers accurate conditions and optimal features provide versatility to adapt the system for specific applications.

Process Airflow 7600m3/hr

Reactivation Airflow 2520m3/hr

Steam input required for the radiators.

Operating Temp -20degC / 40degC

MUNTERS MX7600

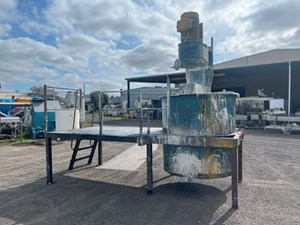

Stainless Steel 1600 Litre mixing tank

Jacketed and insulated.

Heavy duty mixer.

1.5kw 14 rpm SEW geared drive., 3 phase 415 volt.

1700mm straight side

1100mm dia

Overal height 3m

Dished bottom to a 2 inch outlet.

Stainless steel ladder mounted to side of tank.

Manhole in the top.

Tank is mounted on stainless steel legs.

CHEMICAL PLANT 1600

Stainless steel tank 2200lt Insulated and jacketed. Jacket has not been tested. 2 inch outlet. 1750mm dia 900mm high. 1 hp agitator. Open top.

MYTTONS 2200LT

Features:--
Inlet	         - Hopper feed
Outlet	 - 12

Description:--
Paper pulp pump. Can be used to pump any type of thick stock. Stainless steel construction. 12inch discharge.

IMPCO 1200 CLOVE ROTOR
