Stainless steel screw conveyor mounted on steel frame. 1.5m Long x 320mm wide. 200mm screw pitch .37kw 33 rpm geared drive. Inlet 320 mm x 500mm Outlet 320mm x 400mm

JACMOR ENGINEERING 1.5 X 320

Stainless steel holding tank. Approximately 2800 litres. Conical bottom. 2 inch outlet with ss butterfly valve. 2 X 1.5 inch side ports. Manhole on top with lid. Manhole diameter: 450mm Mounted to steel frame with heavy duty casters. Tank is in good condition. Ex pharmaceutical company.

UNKNOWN 2800

CTS 15 litre high speed mixer.

Stainless steel internal bowl.

Jacketed bowl with Grant hot oil boiler

240volt single phase, 2.2kw Baldor DC variable speed drive

Last used to mix plastics.

CTS CTS 15

Side channel blower. 3 Phase 1.3kW 220/380V 2800RPM 220mbar 2.8m

ELEKTROR SD42

Shinko-Vrieco - Nauta Mixer.
Model: SV001V-1
Charged Capacity: 100 Litres
Stainless steel. 3 Phase, 415V with Start/Stop.
Inlet flange on top: 120mm
Outlet flange on bottom: 160mm
The SV Mixer gives the contents a 3 dimensional motion which is a combined movement of three kinds. By a simultaneous rotation and orbital motion of a mixing screw in the conical vessel. Owing to the multiple ef...

SHINKO SV001V-1

Stainless Steel (SS316) Heat Exchanger

2 x 1825 mm long Shell with 10 x 15 mm tubes in each shell.

Shell diameter 125mm

50 mm inlets 150 psi bolt on flanges flanges.

Surface Area of inner tubes is 2.2m2

UNKNOWN LIQUID PROCESSING

Cast Iron Diverter valve with pneumatic controller.
Model: GPD 300 (Gravity plug Diverter Valve)
300mm x 300mm Inlet/Outlet.
Air operated Actuator, Ex rated
Make: DMN Westinghouse
YOM 2012

DMN WESTINGHOUSE GPD 300

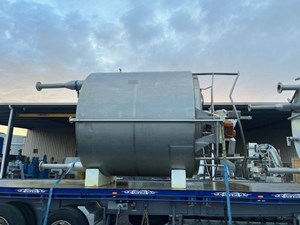

10,000 liter Stainless Steel Mixing Tank with lids.
2300mm dia x 2500mm straight side.
75mm center outlet with valve.
Overall height 4m including Legs.
Agitator sweeping arm, with central SS auger 3kw @ 45rpm 415v and Variable Speed drive.
Single heating coil on bottom on tank.

UNKNOWN 10000

Rasch FI 4 Hollow shape wrapper, last used on rabbit shape chocolate figures.
Machine can run at 60 ppm.
YOM 1990
Wrapping machine especially for hollow figures (symmetrical / asymmetrical) such as rabbits, sitting rabbits, Santa Clause and other figures

RASCH FI 4

1000 Litre insulated heating tank / kettle.
Food grade stainless steel.
Closed top.
3 Phase, 415V, 30kW.
4 x 7.5kW Ceramic bobbin heating elements in working order. (1 element is unserviceable)
Elements are 1.5 metres long in fit into a well.
4 x 1.5 inch side ports.
4 x 1.25 inch top ports.
1 inlet port with solenoid.
Level sensor which communicates to through control box to inlet sol...

BARRY BROWN 1000

Mild steel pipe type screw conveyor.Heavy duty7 mm Screw thickness.200mm screw pitch250mm diam x 5.8m long4kw SEW 222 rpm. Drive 415v.Last used on Gypsum.

JACMOR ENGINEERING 5.8 X 250

Fantech Air Fan. 11 kw 27 inch dual inlet.

Air Flow: 7613 L/Sec

Static Pressure: 741 PA

Total Pressure: 801 PA

Outlet Velocity: 10 m/s

FANTECH 27ALDW
