Features:--
Type	          - spiral

Description--
500mmdia spiral heat exchanger s/steel contact parts 60mm ports built in 1987, rated at 5bar D.P and 100 deg cel. 4.4m2 Heating surface.

ALFA LAVAL IV

Mild Steel Heavy Duty Screw Auger / Screw Conveyor.

Distance from inlet to outlet is 2200mm (Overall length is 2600mm)

Diameter is 200mm

Flight thickness 6mm

Flight pitch 150mm

200mm inlet and outlet

Driven by Reynold Geared motor 1.1kw at 79 rpm, 415V

Runs Well, last used to move lime powder.

JACMOR ENGINEERING 200 X 2200

Stainless steel insulated tank with electric heating. 1000L Volume. Sloped bottom to a 1.5 inch outlet. Stainless steel frame. Triple heating element. 3 Phase, 415V, 20.9A, 15kW. Adjustable temp: 0-120C. Half moon hinged lid. Temp sensor. Multiple 1 inch and 2 inch ports on top. Spray ball for CIP. Overall height: 1620mm W x L: 1800mm x 1800mm. Unit in good condition and heating elements and co...

SS 1000

Flat belt conveyor. Stainless steel construction. 240V with a Variable speed controller and E-stop. Dimensions: Length 2690mm, Belt Width 500mm, Height 925mm SS Table 1500mm X 445mm Ex chocolate factory. Unit in good condition. Unit runs well.

HARWOOD ENGINEERING 2.7 X 0.5

Stainless steel screw auger flight 400mm diameter.
2 lengths approx 3m each.
Bare shaft, no trough or drive motor.

JACMOR ENGINEERING 400 X 3

BREDEL - SPX 10 -High Performance Hose Pump / Peristaltic Metering Pump.
The pumping action results from alternately compressing and relaxing a machined hose between the pump housing and the compressing shoes. The fluid ahead of the shoe is pushed towards the discharge while the rebounding hose behind the shoe draws more fluid in. With 100% compression at all times, the pump does not slip, pro...

2012 BREDEL SPX-10

SPX Stainless steel lobe pump. SPX DW4/073/10 4inch  BSM rectangular inlet 3 inch BSM outlet Rotor: SS 316L High temperature 180c Capacity: 73litre/100 revs Current set up tested to 150L/min or 9,000 L/Hr 3 Phase, 2.2kW, 415V geared drive. Lobe pump is set up in vertical arrangement and mounted on stainless steel frame. Arrangement can be modified to suit required task. Rectangular Inlet for ex...

SPX SPX DW4/073/10

Offered in the revolutionary Platinum GFPP featuring true union end connections in 2 in, with threaded ends. One piece injection molded construction. Pressure rated for 150psi at 70F non-shock, with flow rates up to 100 GPM up to 2 inch.

Make: HAYWARD
Model: FLV4P1S20T4VS
Vessel Material: GFPP
Connection Material: GFPP
Connection Size: 2 inch / DN50
Maximum Pressure Rating: 150psi at 70 degre...

HAYWARD FLV4P1S20T4VS

Stainless Steel 1600 Litre mixing tank

Jacketed and insulated.

Heavy duty mixer.

1.5kw 14 rpm SEW geared drive., 3 phase 415 volt.

1700mm straight side

1100mm dia

Overal height 3m

Dished bottom to a 2 inch outlet.

Stainless steel ladder mounted to side of tank.

Manhole in the top.

Tank is mounted on stainless steel legs.

CHEMICAL PLANT 1600

3.6 mt long x 100 mm wide flat belt conveyor. The conveyor has magnets the lenth of it and was last used for moving cans. SEW geared drive .75kw 48 rpm. Stainless steel frame and rollers.

UNKNOWN 3.6 X 100

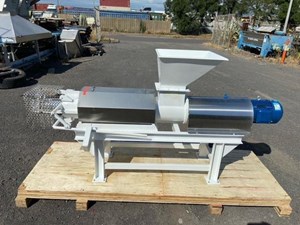

NEW - Dewatering screw press with st/steel auger and dewatering screen. Capacity up to 10m3/hr 0.5mm (500micron) heavy duty St/Steel wedge wire screen 180mm dia screw auger with 80mm screw pitch. End plate resistance via adjustable counter weights Slurries are fed into the hopper which has an auger feed that dewaters the material through the screen. Liquids come out underneath via a drain outle...
