Flat belt conveyor. Mild steel construction. Dimensions: Length 5000mm, Belt Width 600mm, Belt Height 915mm from floor. Unit has no drive however one can be installed if required. Unit is in good condition. Ex chocolate factory.

UNKNOWN 5.0 X 0.6

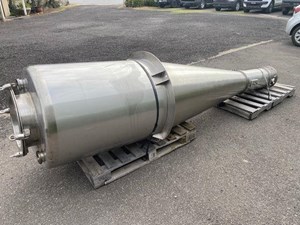

Heavy Duty Stainless Steel Cyclone (SS316)

Approx capacity 30m3/hr (requires fan)

Total height 3500mm

Diameter at widest point 750mm

Dirty air inle 400mm x 180mm

Clean Air outlet (at top) 380mm

Bottom outlet 200mm

Vibrating motor plate fitted to the outlet (no motor fitted)

UNKNOWN 30M3/HR

3100 Litre stainless steel square mixing tank.
Sloped bottom to 1.25inch BSP Outlet.
3 Phase 415V 0.75kW SEW Geared motor.
Agitator 129 RPM.
Level indicating sightglass.
Overall height 2880mm
Leg Height 430mm
Width 1300mm
Runs well

UNKNOWN 3100

Features:--
Size	           - 650 x 650

Description:--

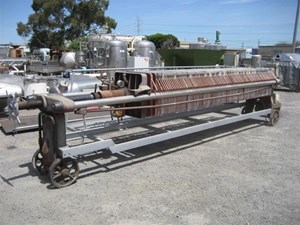

GIANAZZA Italy. Filter Press 650x650 100 Recessed Plates. Plates made of reinforced Resin with Center feed. Complete with Double Acting feed pump. Closing of Press with Hyd hand Pump. Capacity from 10,000 to 20,000kg in 24hrs .

GIANAZZA 650 X 650 - 100

Features:--
Litres	 120

Description:--
A set of mild steel oil heating tanks, each is 120L with agitator and external electrically heated jacket 0-110degC.

UNKNOWN MILD STEEL - OIL TANKS

Stainless Steel Horizontal Barrel Mixer

Total Volume of the barrel is 6000L

Working Volume 3000 Litres

5.5kw 415V drive motor into a gearbox

Barrel speed is approx 76rpm

Overall length is 4.3m, overall width is 2m

Diameter of Barrel 1.4m

600mm dia manhole for laoding and unloading of product.

85mm center outlet

2 mixers available, price per mixer.

UNKNOWN 6000

NEW - 1000L Stainless steel ribbon blender.
This unit is great for blending dry powders and even slurries. They blend in a cross flow method by moving product in both directions at the same time.
Product is fed in the top through a loading hopper, mixed and then discharged out the center bottom outlet.
We keep these machines simple and well made to keep the price down. You wont find a more r...

F.A. MAKER 1000L SS

Stainless steel storage tank.
800 Litres Flat bottom, closed top with manhole
Tank dims 800mm dia x 1550mm tall
On a steel base with the outlet 400mm from the ground
Outlet is 30mm
Overall height is 2000mm
4 tanks available. Price per tank.

UNKNOWN 800

Features:--
Type	          - spiral

Description--
500mmdia spiral heat exchanger s/steel contact parts 60mm ports built in 1987, rated at 5bar D.P and 100 deg cel. 4.4m2 Heating surface.

ALFA LAVAL IV

HALCO Engineering / CONAIR CORP - Reverse pulse dust collector.

Conair dust collectors keep your plant free of air-born dust and fines and prevent dust from fouling the vacuum pump.

A central vacuum dust collector allowws dust filtration to take place at the floor level. An air-tight collection container makes the removal of fines quick and easy.

Automatic filter cleaning is standard, length...

HALCO DC-3

Pin Mill with SS and cast contact parts. This pin mill is a high speed impact grinding machine designed for the grinding of dry materials. These include products such as sugar, salt, spices, dehydrated vegetables, dairy products, extruded products and a number of powders, grains and seeds. Rotor Speed: Approximately 8000 RPM. Motor: 3 Phase, 415 V, 11 kW. Inlet Diameter: 75mm Outlet Diameter: 1...

NOT SPECIFIED UNKNOWN PROCESSING MILLS

Used- Rietz Bepex S-Press Continuous Horizontal ScrewPress,

Model RSP-12-K2,

316L Stainless Steel.

Approximate 12`` diameter x 60`` long screw with a 1mm SS mesh screen.

The screw press is fitted with a pneumatic pressure cone for maximum recovery, liquids are extracted at three separate points; the inlet hopper, the main press and the pressure cone.

Its driven by a 15hp, 3/50/400 volt gea...

RIETZ RSP-12-K2
